AWS D1.1 SMAW Practice Kit with 3/32 Electrodes

Master the D1.1 3G SMAW test with an all-in-one kit!

Weld Metals is proud to offer the first all-in-one kit designed to help your test or practice the AWS D1.1 Welding test. Each kit is assembled with two 3/8" beveled coupons, a 1/4" backer bar, and a pack of E7018 electrodes. This all-in-one kit matches AWS specifications and is 100% USA Mad3

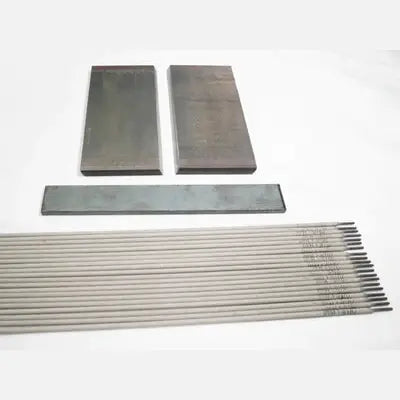

Each Kit Includes

- (2) 3/8" 22.5 degree A36 Weld Test Coupons

- (1) 1/4" Backer bar

- (20) E7018 Electrodes

- Heat Numbers

(MTR Available Upon Request)

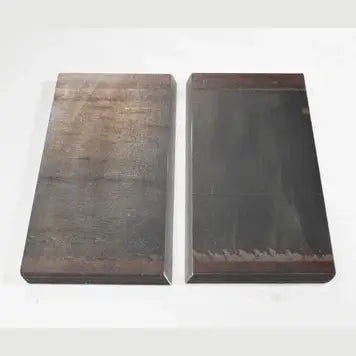

Coupon Dimensions

- 3" between Bevels x 7"

- 22.5 degree bevel on both sides

- 3/8" thickness

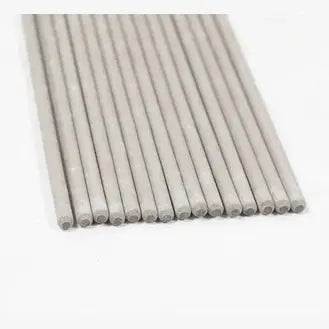

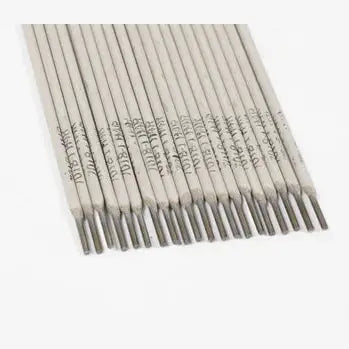

E7018 Specifications

- 3/32" Diameter

- Low Hydrogen Iron Powder Type

- Welds in ALL positions

- Amperage range = 70-110 amps

- Made in USA

Printed WPS for training purposes available for no extra charge (when available)
