AJMU 137 PMQW Set 18V Cordless Universal Core Drill

$3,706.95
Shipping calculated at checkout.
Product Availability Ask about this product

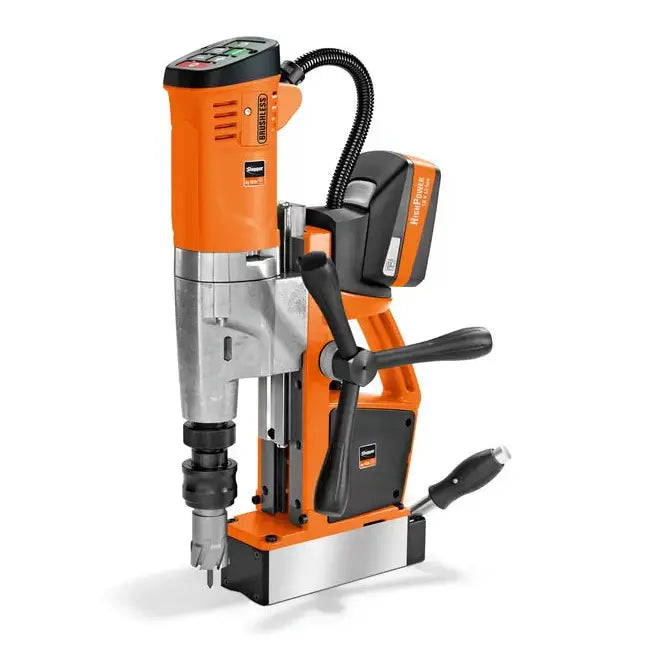

Small, long-stroke, 1-speed universal cordless magnetic base drill with forward / reverse rotation, MT2 tool mounting, permanent magnet and maximum functionality for mobile work on the construction site.

Details

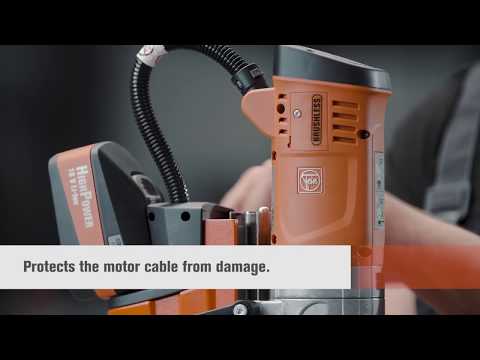

  • Extremely wear-resistant tool concept with swivel-mounted motor cable protection hose for tough conditions in industry and skilled trades.
  • Small and lightweight tool for persistently high long-term work progress thanks to brushless FEIN PowerDrive motor with tacho electronics and FEIN HighPower battery with high-current-capable cells.
  • Flexibility in all mobile drilling operations, such as mag base drilling, spiral drilling, tapping, sinking and reaming.
  • FEIN HighPower Li-ion battery. Continuously high current output with 75% higher amperage than Li-ion batteries for high cutting speed.
  • Simple and error-proof control concept in the operator's field of view.
  • Easy to read convenient magnetic holding force display.
  • Motion sensor.
  • Reversible.
  • Electronic speed control.
  • Extra long stroke.
  • MT2 tool mounting.
  • Extra narrow permanent magnet with magnetic bias.
  • "Memory function" speed storage.
  • The battery capacity can be read directly on the battery.
  • FEIN SafetyCell technology. Protects the battery and the machine from overloading, overheating and deep discharge.
  • * optional using accessory.
  • ** Highest performance with FEIN HighPower Li-ion battery.

Technical data
Battery voltage 18 V Sound Pressure level LpA
Uncertainty of measured value KpA		 82.4 dB
3dB
Battery capacity 5.2 Ah Sound power level LWA
Uncertainty of measured value KWA		 93.4 dB
3 dB
Battery compatibility Li-ion / HighPower Li-ions*** Sound peak value LpCpeak
Uncertainty of measured value KpCpeak		 97.1 dB
3 dB
Battery Interface 18 V Vibration value 1 αhv 3-way
Measurement uncertainty of the measured value Ka		 αh,D 0,6 m/s²
1,5 m/s²
Motor Brushless
Full load speed 130-520 rpm
Tool mount MT 2
Carbide cutter max. dia. 1-3/8(35) in(mm)
HSS cutter max. dia. 1-3/8(35) in(mm)
Cutter max. drilling depth 2(50) [3(75)]* in(mm)
Twist drill max. dia. 3/4(18) in(mm)
Tapping M 14
Max. countersink dia. 1-1/4(31) in(mm)
reaming max. dia. 3/4(18) in(mm)
Cutter holder 3/4" Weldon
Cutter change tool-free
Stroke 5-5/16(135) in(mm)
Total stroke range 10-1/4(260) in(mm)
Magnetic holding force 2023(9000) lbs(N)

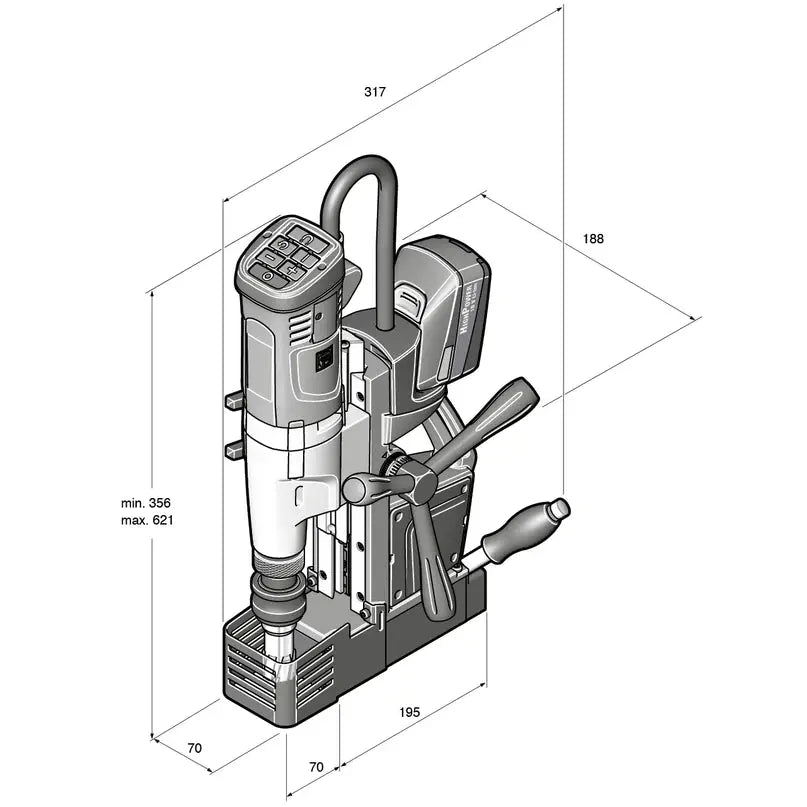

Magnetic base dimensions 7-11/16(195) x 2-3/4(70) in(mm)
Weight incl. battery 28.22(12.80) lbs(kg)
Weight without battery 26.68(12.10) lbs(kg)

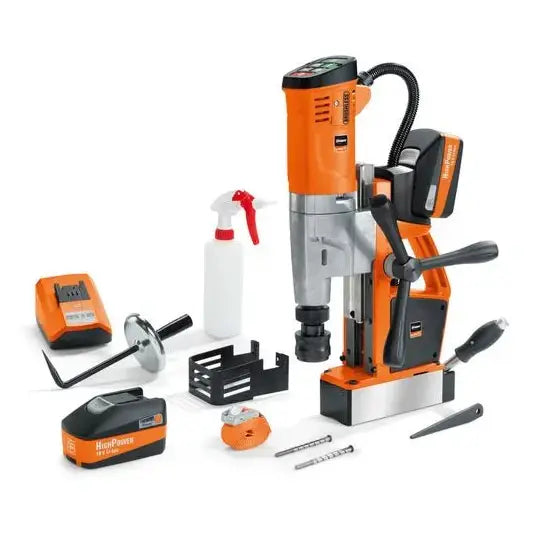

Includes
  • 2 battery packs (HighPower Li-ions)
  • 1 rapid charger ALG 80
  • 1 coolant pump
  • 1 safety strap
  • 1 chip hook
  • 1 pilot pin
  • 1 chip guard
  • 1 drift
  • 1 case
Product feature
  • Magnet holding force display
  • Forward/reverse operation
  • Electronic speed setting
  • Memory function
  • Speed-controlled tacho electronics
  • Tilt sensor
